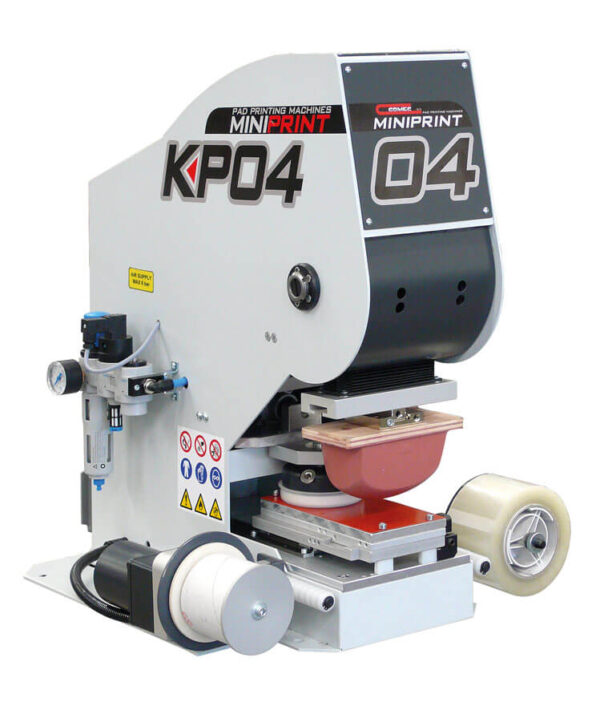

KP04 Pad Printing Machine
The KP04 Pad Printing Machine is the smallest horizontal pad printer we offer. The machine is equipped with a digital programmable microprocessor capable of executing multiple operations and performing all production functions.
Ready to move forward or have questions?
KP04 is an electropneumatic pad printing machine 1 to 4 colors for printing in horizontal at 90°.
This orientation, that overturns the traditional concept of pad printing, which occurs vertically, is aimed to meet the needs of automated lines allowing the printing of the logo on the product in production, without changing the position of the workpiece and without adding additional steps to workflow.
The machine operates with hermetic inkcups and ceramic rings up to 90 mm diameter and clichés of 100×200 mm. It is able to work at very high cycles and has a steel structure that ensures stability and precision of movements. It can be equipped with automatic and programmable pads cleaning.
The control panel, capable of managing all the operations of the machine, is positioned on the rear side.
Inputs and outputs are fitted for easy connection to existing lines and automation.
| Printing Type | Pad Printing |
|---|
- This pad print machine is ideal for horizontal inline printing of parts that need to stand vertically, and can also be modified to print from below onto the bottom of parts being conveyed over the printer.
- Adjustable for use with multiple sizes of sealed cups and clichés.
- Features a horizontal pad stroke adjustable between 45 and 90 degrees.
- Built to accept a 60mm, 90mm, 130mm or 160mm sealed cup with minimal modifications.
- Pad stroke is variable to 8 inches
- Two horizontal printers can also be configured to print on opposite sides of bottles or other items simultaneously
- Flexible control panel positioning based on manufacturing requirements.
- The machine is equipped with a digital programmable microprocessor capable of executing multiple operations and performing all production functions.
- Available only as a one-color pad printer.
- Accepts a 90mm sealed ink cup and 200mm x 200mm cliché.
- The KP04 GL accepts a 60mm sealed ink cup and 200mm x 200mm cliché upon which one can etch multiple images.
