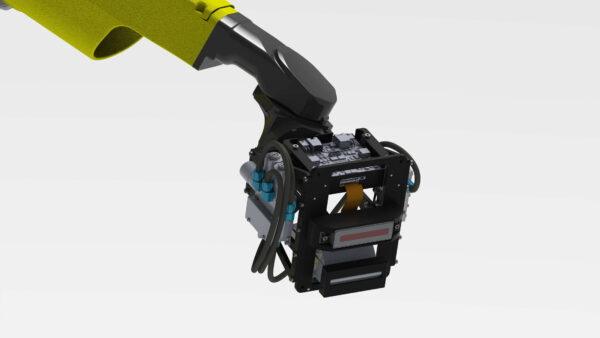

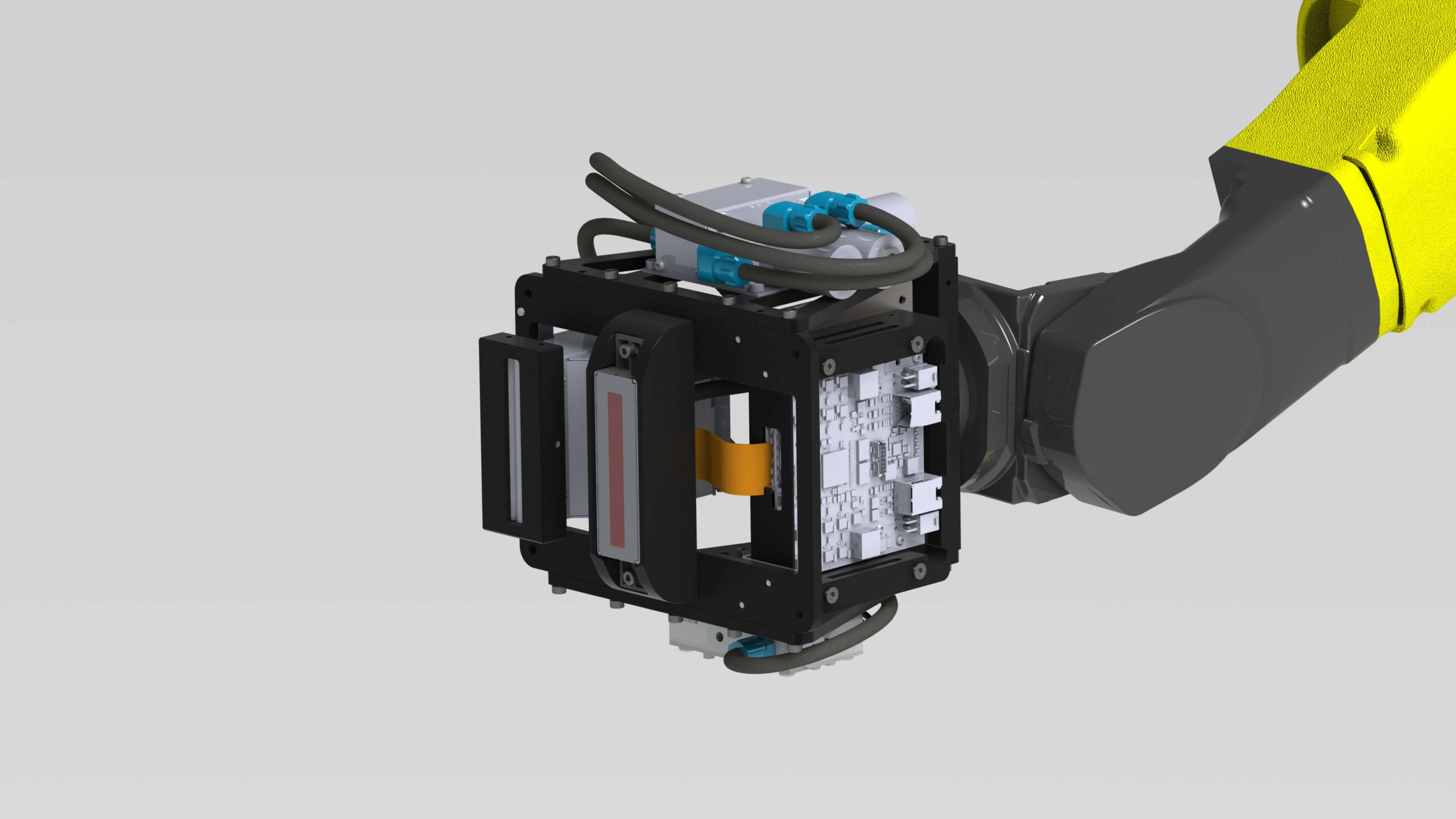

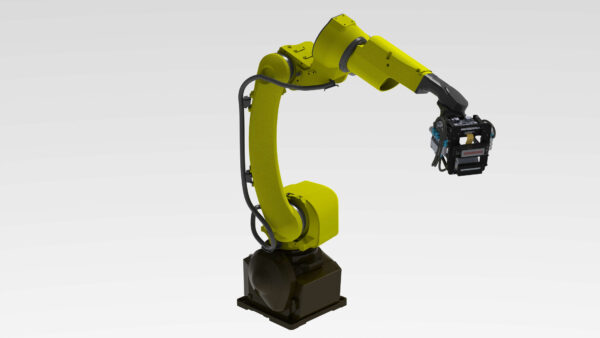

XDR EOAT Direct-to-Object Digital UV Industrial Automated Single Pass Inkjet Printer

• Printing to complex dimensional shapes
• Ability to print to typically ‘out of reach’ inkjet zones
• Automation line mountable
• Compact footprint
• With reduced footprint of typical inkjet
• Multi-axis print capabilities (printing to multiple sided parts without part motion)
• Could potentially print while the part is in motion with sequenced timing
• Reduced tooling costs for line mounted transports
• Seamless integration into existing lines – no transitions to print systems required
• Scalable architecture – can be ganged with additional units for full process color printing
• True spherical printing possible

Standard Features:

• 70mm, 140mm and 210mm print width, infinite length.
• 360dpi, single pass, grayscale.
• Max robot reach of 3 meters.
• Fanuc industrial robot.
• Print speeds up to 6in/s on curved or large surfaces.
• Liquid UV curable inks.
• Self-contained ink system with bulk refill.
• Built in distance/object detection.
• Job & Print Queue Management for local and remote diagnostics.
• Beckhoff Industrial PC with standard HMI interface.
• Remote customer interface.
• Typical Power Requirements: 240VAC, 50/60Hz, 3 phase, 20A.

Options:

• Second color option.
• 2D and 3D iRVision for positioning and verification
• Variable data for lot/date codes, etc.
